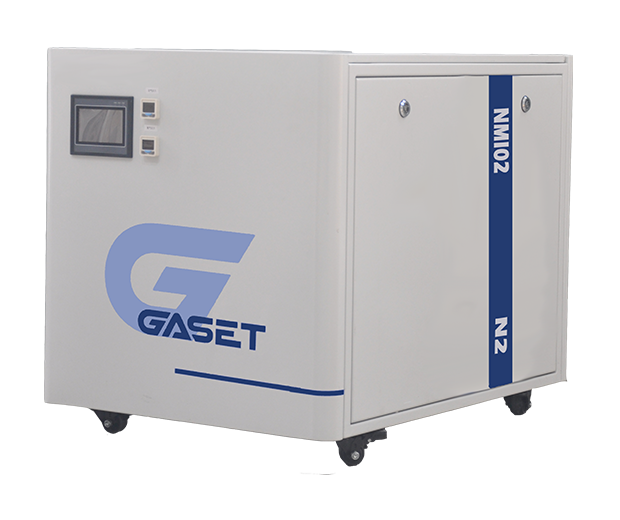

NMI integrated nitrogen generator
NMI series membrane separation nitrogen generator is composed of one or more membrane separators. When the clean compressed air passes through the polymer membrane, due to the difference in the solubility and diffusion coefficient of various gases in the membrane, the relative permeability of different gases in the membrane is caused rates are different.When the pressurized purified air is used as the gas source, the gas with relatively fast permeability, such as water, hydrogen, oxygen, carbon dioxide, etc., is enriched on the side of the membrane after passing through the membrane. while the gas with relatively slow permeation rate, gases such as nitrogen and argon are enriched on the retentate side of the membrane, thereby achieving the effect of separating the mixed gas. Nitrogen and other inert gases are enriched into high-purity gases for production use, while the enriched oxygen-enriched air on the permeate side is evacuated as waste gas. The nitrogen membrane uses this principle to separate nitrogen and oxygen in the air through multiple bundles of semi-permeable hollow fiber filaments made of polymer materials.
Parameters:Nitrogen flow: 5l~40l/min; Nitrogen purity: 97%~99%
Buy now
Service hotline:0512-68215915
Product advantages

♦ It is a high-quality technology for normal temperature air separation

High quality technology

♦ Relative to nm series, NMI series is internally integrated with air compressor and air purification system

Air purification system

♦ No dust or particles

Nitrogen product cleaning
No noise

♦ No moving parts, meeting environmental protection requirements

Relative PSA nitrogen production

♦ Small size and light weight

Easy operation

♦ It is easy to operate and can produce qualified nitrogen in a short time

High quality technology

♦ It is a high-quality technology for normal temperature air separation

No noise

♦ No moving parts, meeting environmental protection requirements

Air purification system

♦ Relative to nm series, NMI series is internally integrated with air compressor and air purification system

Relative PSA nitrogen production

♦ Small size and light weight

Nitrogen product cleaning

♦ No dust or particles

Easy operation

♦ It is easy to operate and can produce qualified nitrogen in a short time

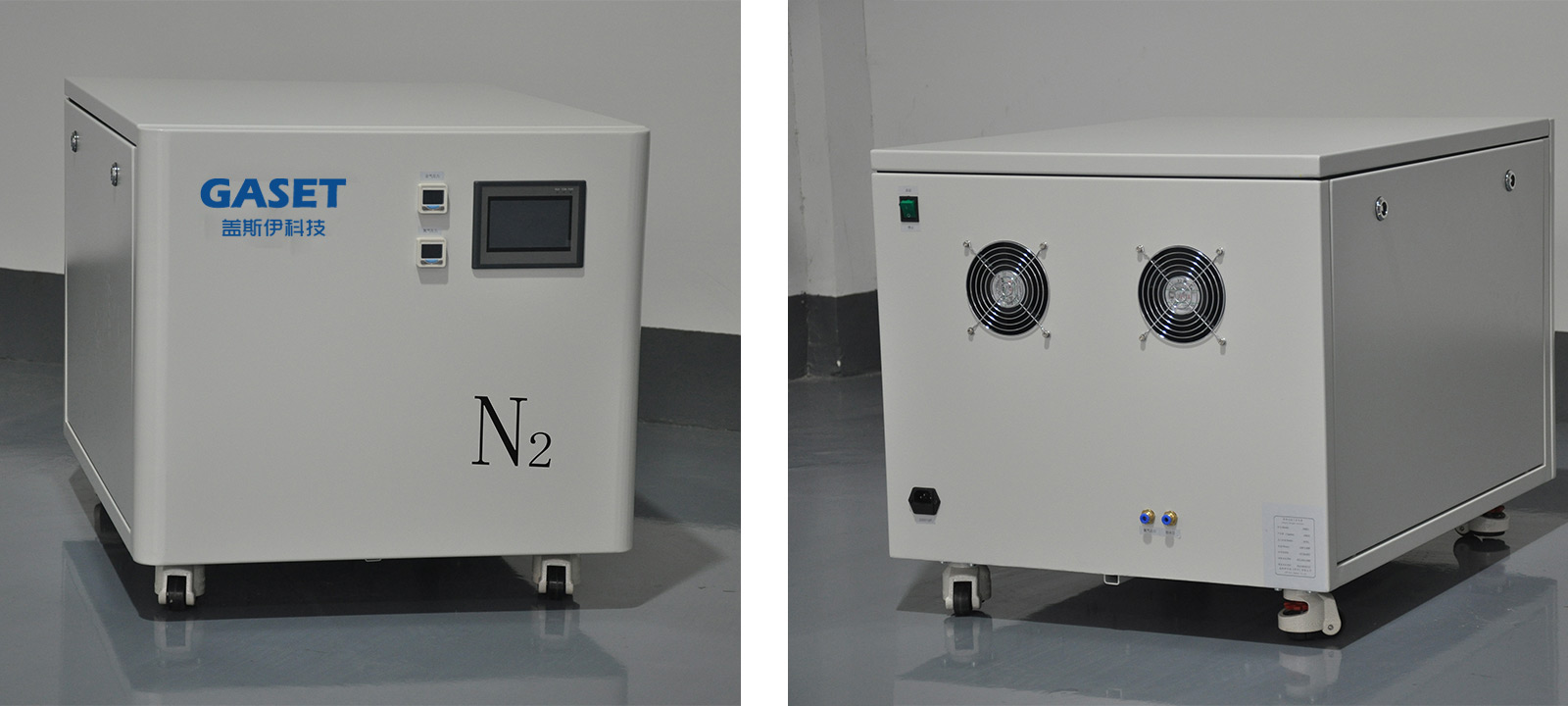

Product details
